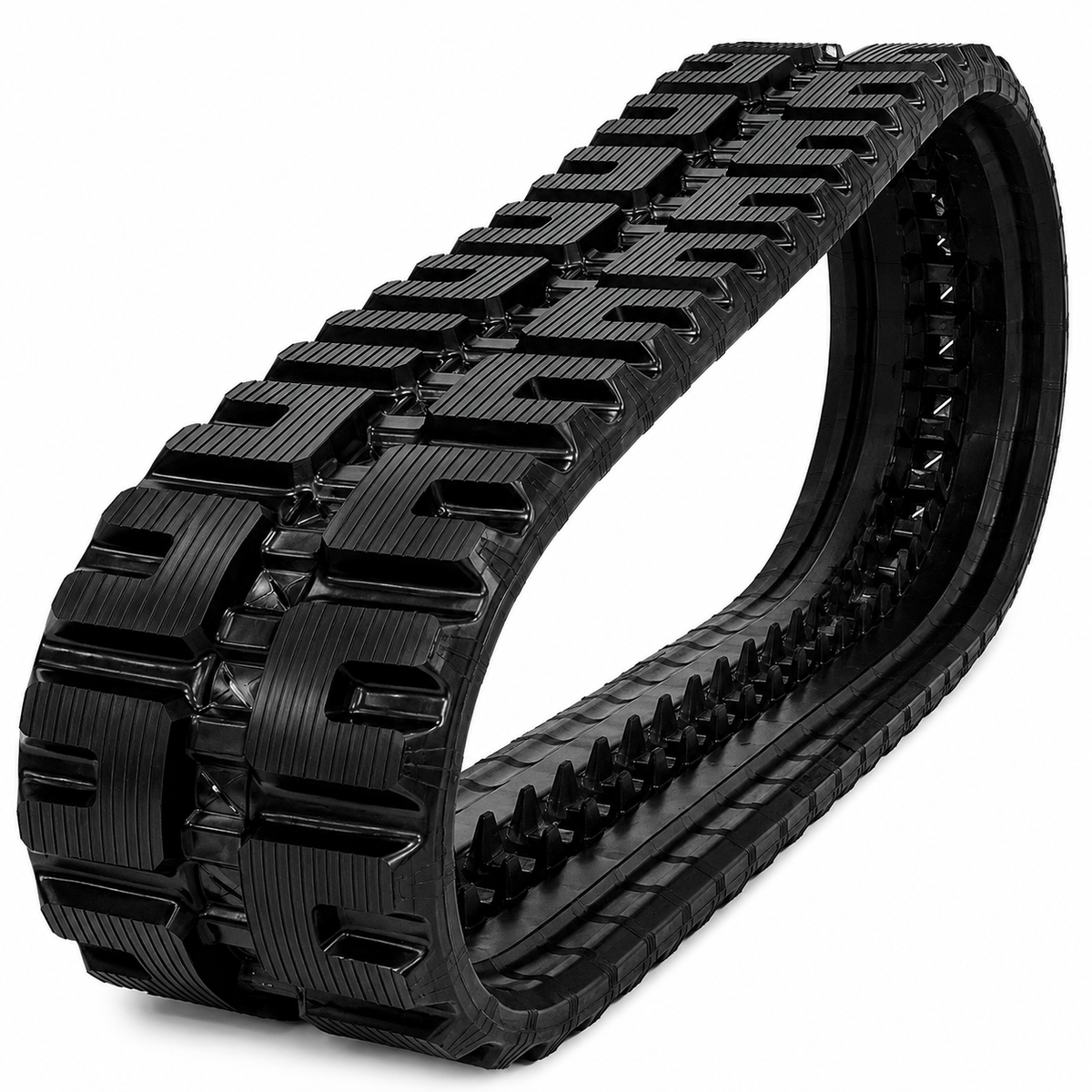

Understand rubber track width, pitch and link count, what a size code means and why matching the numbers alone may not confirm machine fitment.
What the three numbers describe
A common rubber track size format gives width in millimeters, pitch in millimeters and the number of links. For example, a 400 × 86 × 52 listing describes those three dimensions in that order. Treat this as a reading example, not a fitment recommendation for a particular machine.
Width is only the first check
Track width is measured across the track. A wider option is not automatically approved for your machine: clearance and the manufacturer’s permitted configurations matter. Compare the complete specification before assuming an alternative width will work.
Pitch describes repeated engagement spacing
Pitch is the repeated spacing used by the track’s drive system. It must match the machine’s sprocket and track design. Do not substitute a nearby number because it appears close enough. When a marking is unreadable, use the manufacturer’s measurement method or ask a supplier to identify it from reliable measurements and photographs.
Link count controls the loop length
The link count is the number of repeating links around the complete loop. Count according to the track maker’s method, marking a starting point to avoid counting twice. Do not use the number of outer tread blocks as a universal substitute. Different tread designs may not have a one-to-one relationship with the internal links.
Check the information beyond the numbers
Internal guide profile, drive configuration and any suffixes can distinguish tracks with similar nominal dimensions. Record every letter on the marking and photograph the inside of the track. Cross-check the exact model and serial number. If the existing track was incorrectly fitted, copying it repeats the problem; confirm against the machine specification.
Browse rubber tracks or find parts by machine.
Frequently asked questions
What does 400 × 86 × 52 mean?
In the common width-pitch-link format, it means 400 mm width, 86 mm pitch and 52 links. Confirm the supplier’s notation and full fitment specification.
Can two tracks with the same three numbers differ?
Yes. Their internal guide or drive configuration and construction can differ, so the numbers alone do not always establish compatibility.
Can I count outer tread blocks instead of links?
Do not assume they are the same. Use the track manufacturer’s link-counting method.
What if the size marking has letters?
Record the complete marking, including letters, and ask the supplier what those suffixes mean for that specific track.
What if the marking is unreadable?
Provide model and serial details, photographs of the inside and outside, and measurements taken using the appropriate method.
